PR Lens open source tool: automatically generate architecture and data flow walkthrough diagrams during code reviewPR Lens 开源工具:在代码评审里自动生成架构与数据流走查图

Can’t understand the code review, and the PR backlog is unattended? PR Lens generates animated architecture diagrams and data flow walkthrough diagrams directly in Pull Requests, allowing reviewers to understand the change path at a glance. Approximately 1,300 stars on GitHub.

代码评审看不懂、PR 积压没人盯?PR Lens 直接在 Pull Request 里生成动画版架构图与数据流走查图,让评审者一眼看懂改动路径,GitHub 约 1300 星。

2026-09-27 更新 · 免费
PR Lens 开源工具:在代码评审里自动生成架构与数据流走查图

Specialized in treating "PR can't understand"专治「PR 看不懂」

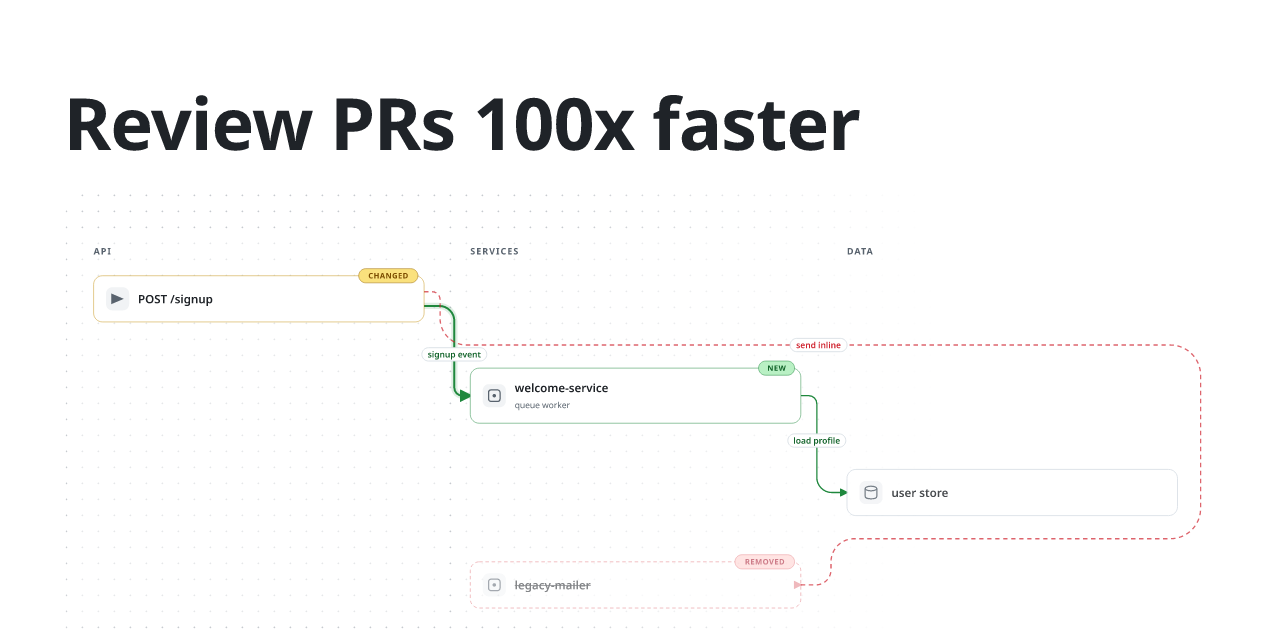

PR Lens is open sourced by the Coldteadotai team and is positioned as a "visual walkthrough" for code review: for a PR change, it automatically generates architecture walkthrough diagrams, data flow diagrams and comment views, and highlights key nodes according to the change path.

It supports five levels of information density (tier1 to tier5) from minimalist to dense. A simple diagram can be made with small changes, and a complete link can be drawn with large changes across warehouses.

中文

PR Lens 由 Coldteadotai 团队开源,定位是代码评审的「可视化走查」:针对一次 PR 的改动,自动生成架构走查图、数据流图和批注视图,按改动路径高亮关键节点。

支持从极简到密集五个信息密度层级(tier1 至 tier5),小改动一张简图,跨仓库大改动也能画出完整链路。

专治「PR 看不懂」

Core features核心特性

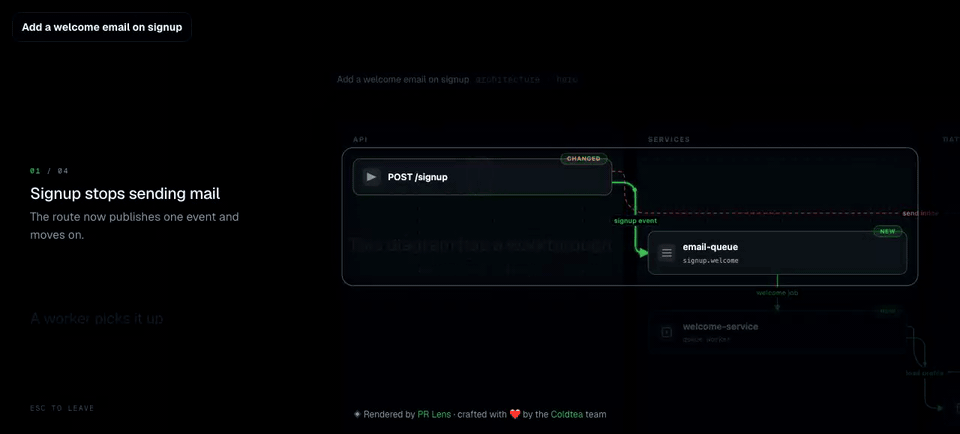

Automatic walkthrough: Map PR file changes to architecture nodes, generate annotated walkthrough animation, and "look at the picture" before reading the code before reviewing.

Multiple views: architecture diagram, data flow diagram, annotation reference diagram, mixed type diagram, two sets of light/dark themes switch with the warehouse configuration.

Out-of-the-box: pnpm workspace structure, with Claude Code integration instructions and end-to-end examples, suitable for team self-hosting.

中文

自动走查:把 PR 的文件改动映射到架构节点,生成带注释的走查动画,评审前先「看图」再读代码。

多种视图:架构图、数据流图、批注参考图、混合类型图,浅色/深色两套主题随仓库配置切换。

开箱即用:pnpm 工作区结构,附 Claude Code 集成说明与端到端示例,适合团队自托管。

Download and deploy下载与部署

This site provides the v0.9.0 complete source code package (about 3 MB). After decompression, follow the warehouse instructions pnpm install to run it locally.

It is recommended to use it with Claude Code or other coding agents: the review agent calls PR Lens to generate a walkthrough chart and paste it back to the PR comment area.

中文

本站提供 v0.9.0 完整源码包(约 3 MB),解压后按仓库说明 pnpm install 即可本地运行。

推荐配合 Claude Code 或其他编码智能体使用:评审智能体调用 PR Lens 生成走查图,贴回 PR 评论区。

下载与部署

Notes使用提醒

This article is compiled from public sources and ships with the matching resource. Product features and pricing are subject to the official page. Resources are for learning and exchange only — please respect the original license.

中文

本文整理自公开资料并附上配套资源;涉及产品的功能与价格以官方页面为准。资源仅供学习交流,请遵循来源许可。

资源下载 · Download

⬇ Download · 点击下载:PR Lens v0.9.0 源码包(3.0 MB)

来自 GitHub 仓库 coldteadotai/pr-lens v0.9.0 标签源码,含示例图与集成文档
