Graphic tutorial: loading Ruflo into Claude Code, from an empty project to a team of collaborative agents图文教程：把 Ruflo 装进 Claude Code，从空项目到一支会协作的代理小队

Look at the Claude Code version: claude --version, which requires 2.1.287 or higher, and the lower version needs to be upgraded first.

Type/plugin marketplace add ruvnet/ruflo in the session to add Ruflo's plugin marketplace; then/plugin open the panel to see the ruflo entry in Marketplaces.

The plugin will run under your account privileges. Before installing it, it is recommended to look at the source code in the plugins directory, especially the routing and policy section in ruflo-mods.

Execute/plugin install ruflo-core @ ruflo,/plugin install ruflo-console @ ruflo,/plugin install ruflo-mods @ ruflo. core is the basic tool, console is the proxy cockpit, and mods provides routing and policy constraints.

After installing the/reload-plugins reload, the new command is immediately available without restarting the session.

Not Claude Code users can also play: run npx ruflo @ latest init wizard in the project directory to walk through the wizard, then open the terminal console with npx ruflo tui.

Execute/ruflo in the project root directory to enter the Ruflo session, which will first read the repository structure and establish the initial memory.

Give it a task that requires multi-role collaboration, such as “Add a set of integration tests to this module and easily fix obvious boundary problems.” It is automatically split into the implementation agent and the test agent, and is aggregated after parallel advancement.

After running the task, you can use the query command in/ruflo to see which agents were used for this task, which steps failed, and what the final conclusion was.

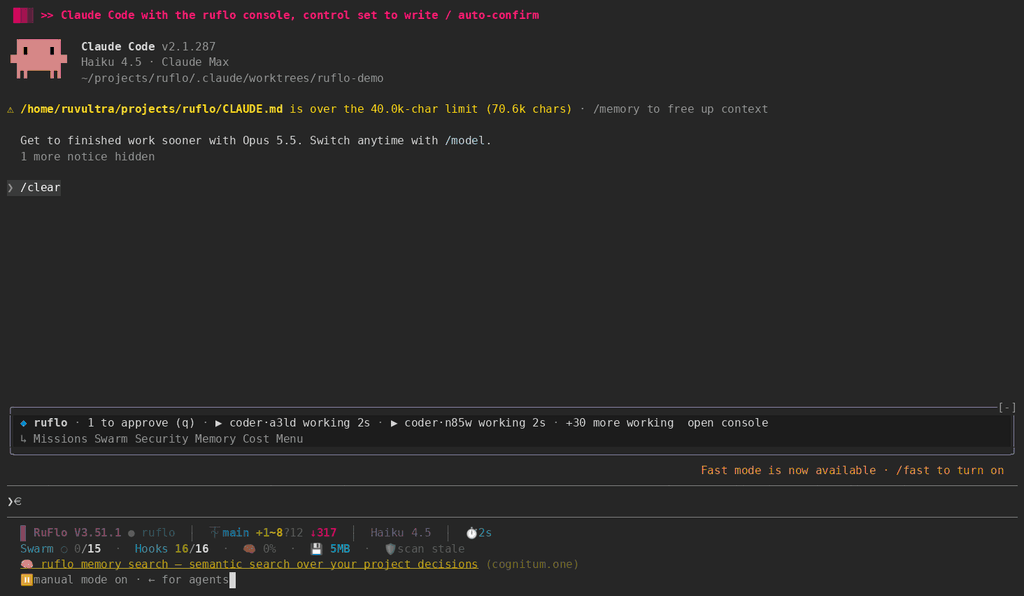

ruflo-console opens the cockpit, Overview looks at the overall status, Swarm looks at the agent topology and the progress of each node, Cost accumulates the cost of this task in real time, and Events is the complete event flow.

The terminal party uses npx ruflo tui, four panels are also available, and -plain can print single-frame snapshots, which is convenient to cram into scripts or logs.

I want Codex and Cursor to be connected to the same set of memories: configure the MCP server as npx -y ruflo @ latest mcp start, and share the map and task record on both sides.

Install ruflo-rag-memory if you need cross-session memory; install ruflo-ruvllm for model routing and cost optimization; and install ruflo-security-audit for security review.

It comes with 33 native plugins and 21 npm plugins, and the principle is "add one on demand" - each additional plugin increases the contextual overhead of each round of conversations.

The team uses suggestions to write the plugin list into the repository's .claude/settings.json, locked version, reproducible.
